Place of Origin:
Liaoning,China
Μάρκα:
Deutz
Πιστοποίηση:
ISO9001, CE, EPA
Model Number:
BF4M1013
Επικοινωνήστε μαζί μας
Performance Parameter

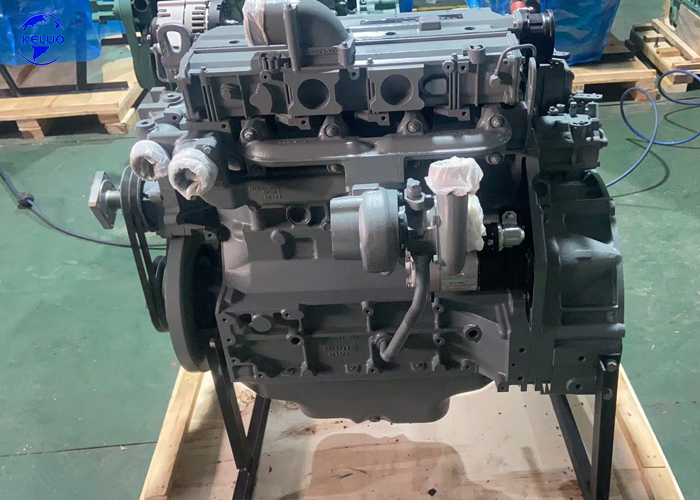

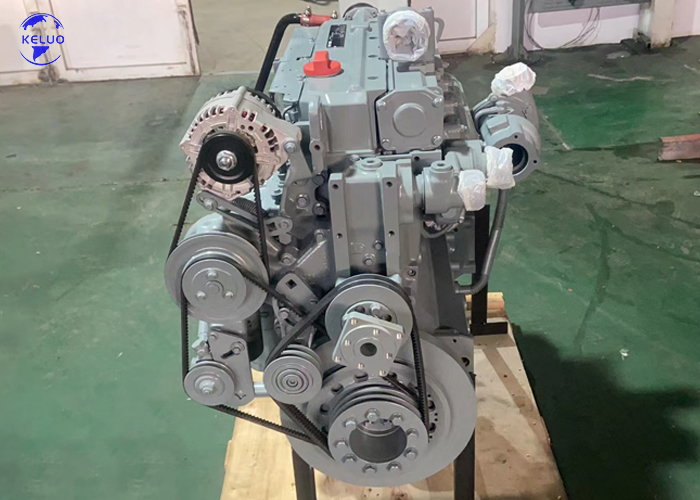

TECHNICAL DATA OF THE DEUTZ BF4M 1013 FC ENGINE | |
Engine model | BF4M 1013 FC |
Diesel engine 4 stroke with injection | direct injection |
Number of cylinders and their arrangement | 4 in a row |
Speed controller | electronic |
Engine capacity | 4.8 liters |
Cylinder Bore x Piston Stroke | 108x130 mm |
Supercharging | No |
Cooling system | water |
Flywheel housing/ Flywheel | SAE 2 10"/11.5" |
Type of oil | ACEA E2 - E5 |
Engine oil consumption | <0.6% fuel consumption |
Fuel type | EN 590 |
Frequency of oil and filter changes | 400 hours |
Fuel consumption at 100% load l/h (g/kWh) | 1500 rpm = 29.0 (205.0) |
Fuel consumption at 80% load l/h (g/kWh) | 1500 rpm = 21.3 (205.0) |
Fuel consumption at 50% load l/h (g/kWh) | 1500 rpm = 14.5 (209.0) |
Cooling system capacity | 11.0 liters |
Full capacity of lubricating oil system including pipes, filters, etc. | 13.0 liters |
Electric power system | 12V common collector voltage |
Cold start without preheating | -10 °C |
Cold start with preheating | -25 °C |
Dry weight of the engine | 560 kg |
Dimensions (LxWxH), mm | 1479x728x1151 |
Advantages
Q1: What is your delivery time?
A: Delivery time is within 15 working days.
Q2: What are the payment terms?
A: Normally we accept TT 30% production deposit and TT 70% balance before shipment.
Q3: What color can I choose?
A: We can customize the color according to your color number.
Q4: Can I see the production progress after placing the order?
A: Yes, during the production process, we can make video calls and we can take photos/videos for your reference.
